Accessing CloudEvent traces

Depending on the request tracing tool that you have installed on your Knative Eventing cluster, see the corresponding section for details about how to visualize and trace your requests.

Before you begin

You must have a Knative cluster running with the Eventing component installed. Learn more.

Configuring tracing

With the exception of importers, the Knative Eventing tracing is configured through the config-tracing ConfigMap in the knative-eventing namespace.

Most importers do not use the ConfigMap and instead, use a static 1% sampling rate.

You can use the config-tracing ConfigMap to configure the following Eventing components:

• Brokers
• Triggers
• InMemoryChannel
• ApiServerSource
• PingSource
• GitlabSource
• KafkaSource
• PrometheusSource

Example:

The following example config-tracing ConfigMap samples 10% of all CloudEvents:

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-tracing
  namespace: knative-eventing
data:
  backend: "zipkin"
  zipkin-endpoint: "http://zipkin.istio-system.svc.cluster.local:9411/api/v2/spans"
  sample-rate: "0.1"

Configuration options

You can configure your config-tracing with following options:

• backend: Valid values are zipkin or none. The default is none.

• zipkin-endpoint: Specifies the URL to the zipkin collector where you want to send the traces. Must be set if backend is set to zipkin.

• sample-rate: Specifies the sampling rate. Valid values are decimals from 0 to 1 (interpreted as a float64), which indicate the probability that any given request is sampled. An example value is 0.5, which gives each request a 50% sampling probablity.

• debug: Enables debugging. Valid values are true or false. Defaults to false when not specified. Set to true to enable debug mode, which forces the sample-rate to 1.0 and sends all spans to the server.

Viewing your config-tracing ConfigMap

To view your current configuration:

kubectl -n knative-eventing get configmap config-tracing -oyaml

Editing and deploying your config-tracing ConfigMap

To edit and then immediately deploy changes to your ConfigMap, run the following command:

kubectl -n knative-eventing edit configmap config-tracing

Accessing traces in Eventing

To access the traces, you use either the Zipkin or Jaeger tool. Details about using these tools to access traces are provided in the Knative Serving observability section:

• Zipkin
• Jaeger

Example

The following demonstrates how to trace requests in Knative Eventing with Zipkin, using the TestBrokerTracing End-to-End test.

For this example, assume the following details:

• Everything happens in the includes-incoming-trace-id-2qszn namespace.
• The Broker is named br.
• There are two Triggers that are associated with the Broker:
  • transformer - Filters to only allow events whose type is transformer. Sends the event to the Kubernetes Service transformer, which will reply with an identical event, except the replied event's type will be logger.
  • logger - Filters to only allow events whose type is logger. Sends the event to the Kubernetes Service logger.
• An event is sent to the Broker with the type transformer, by the Pod named sender.

Given this scenario, the expected path and behavior of an event is as follows:

1. sender Pod sends the request to the Broker.
2. Go to the Broker's ingress Pod.
3. Go to the imc-dispatcher Channel (imc stands for InMemoryChannel).
4. Go to both Triggers.
   1. Go to the Broker's filter Pod for the Trigger logger. The Trigger's filter ignores this event.
   2. Go to the Broker's filter Pod for the Trigger transformer. The filter does pass, so it goes to the Kubernetes Service pointed at, also named transformer.
      1. transformer Pod replies with the modified event.
      2. Go to an InMemory dispatcher.
      3. Go to the Broker's ingress Pod.
      4. Go to the InMemory dispatcher.
      5. Go to both Triggers.
         1. Go to the Broker's filter Pod for the Trigger transformer. The Trigger's filter ignores the event.
         2. Go to the Broker's filter Pod for the Trigger logger. The filter passes.
            1. Go to the logger Pod. There is no reply.

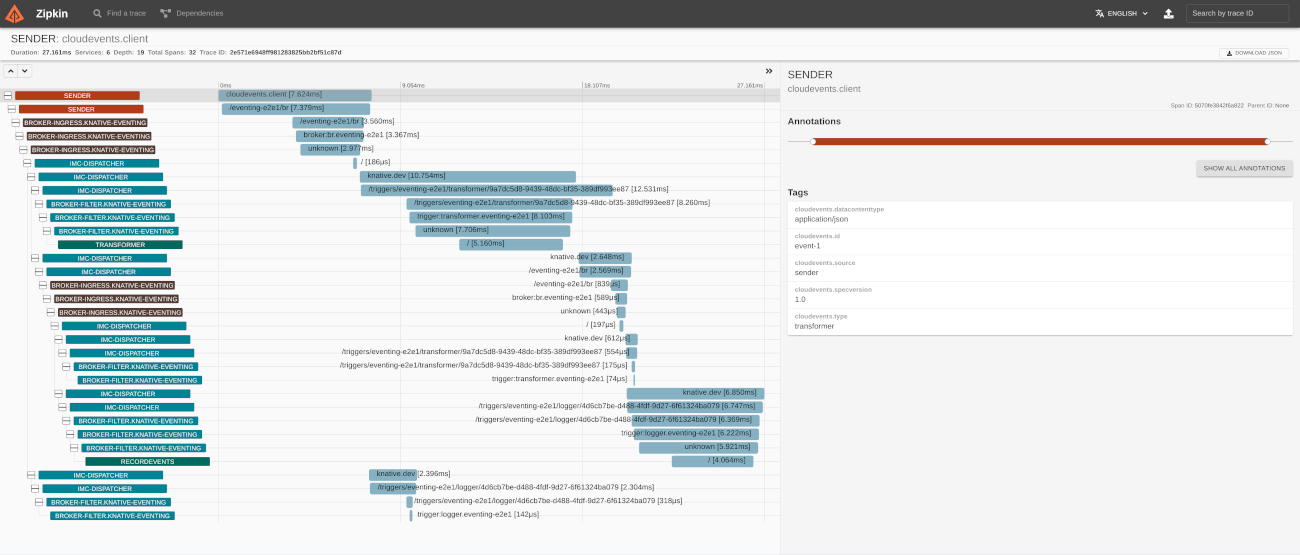

This is a screenshot of the trace view in Zipkin. All the red letters have been added to the screenshot and correspond to the expectations earlier in this section:

This is the same screenshot without the annotations.

If you are interested, here is the raw JSON of the trace.
